Chart Plotter Compatibility

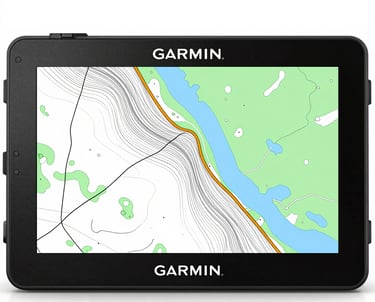

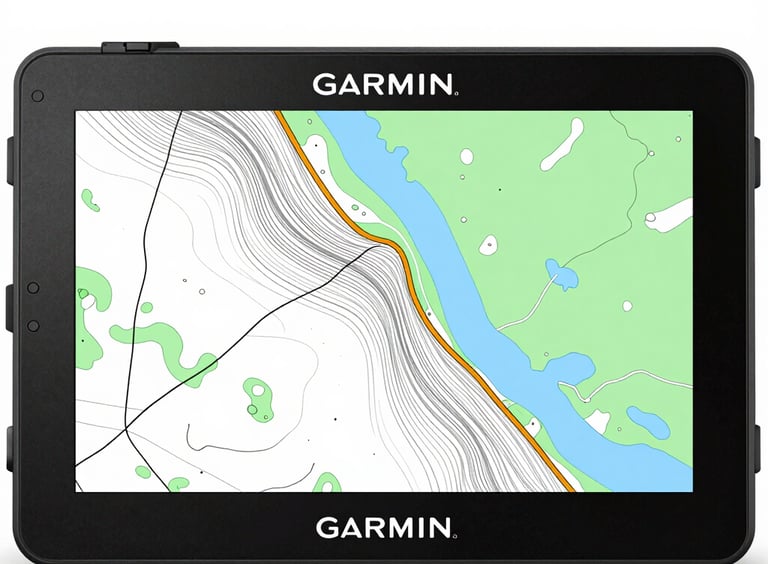

Garmin Chart Plotters

The Following MFD Models only need the RCA to BNC adapter that is supplied with NAVI: GPSMAP® 9500 Black Box, GPSMAP® 9227, GPSMAP® 9224, GPSMAP® 9222, GPSMAP® 9219, GPSMAP® 9027, GPSMAP® 9024, GPSMAP® 9022, GPSMAP® 9019, GPSMAP® 8700 Black Box, GPSMAP® 8624, GPSMAP® 8622, GPSMAP® 8617, GPSMAP® 8616 xsv, GPSMAP® 8616, GPSMAP® 8612xsv, GPSMAP® 8612, GPSMAP® 8610xsv, GPSMAP® 8610, GPSMAP® 8422, GPSMAP® 8417 MFD, GPSMAP® 8416xsv, GPSMAP® 8416, GPSMAP® 8412xsv, GPSMAP® 8412, GPSMAP® 8410xsv, GPSMAP® 8410, GPSMAP® 8215, GPSMAP® 8212, GPSMAP® 8015, GPSMAP® 8012, GPSMAP® 7616, GPSMAP® 7612, GPSMAP® 7610, GPSMAP® 7607, GPSMAP® 7416, GPSMAP® 7412, GPSMAP® 7410, GPSMAP® 1643xsv, GPSMAP® 1643, GPSMAP® 1623xsv, GPSMAP® 1623, GPSMAP® 1243xsv, GPSMAP® 1243, GPSMAP® 1242xsv, GPSMAP® 1224xsv, GPSMAP® 1224, GPSMAP® 1223xsv, GPSMAP® 1223, GPSMAP® 1222xsv, GPSMAP® 1222, GPSMAP® 1042xsv, GPSMAP® 1042, GPSMAP® 1022xsv, GPSMAP® 1022, GPSMAP® 952, GPSMAP® 943 xsv, GPSMAP® 943, GPSMAP® 942, GPSMAP® 923xsv, GPSMAP® 923, GPSMAP® 752, GPSMAP® 743 xsv, GPSMAP® 743, GPSMAP® 742xs, GPSMAP® 742, GPSMAP® 741xsv, GPSMAP® 741, GPSMAP® 723xsv, GPSMAP® 723, AQUAMAP 1022, AQUAMAP 1052, AQUAMAP 1222, AQUAMAP 1252

The Following MFD Models need Garmin 17 pin video adapter cable (Garmin part number: 010-11091-00) and the RCA to BNC adapter that is supplied with NAVI: GPSMAP® 7215, GPSMAP® 7212, GPSMAP® 7015, GPSMAP® 7012, GPSMAP® 6212, GPSMAP® 6206, GPSMAP® 6012, GPSMAP® 6008, GPSMAP® 5215, GPSMAP® 5212, GPSMAP® 5012, GPSMAP® 4210

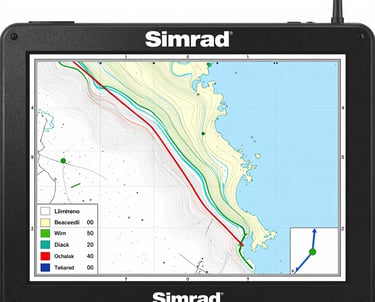

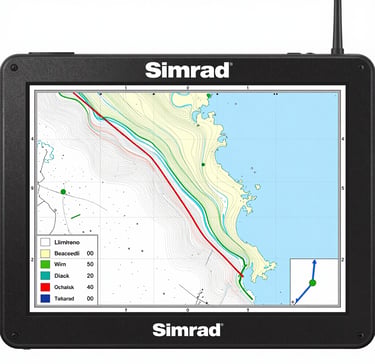

Simrad/Lowrance/B&G Chart Plotters (Navico)

The Following MFD Models need the RCA cable that is supplied with NAVI and associated adapter cables purchased from Navico:

Simrad - All NSO/NSE/NSS models (Evo2, Evo3, Evo3S) needs NSE/NSS Video/Data Cable - Simrad Part Number: 000-00129-001

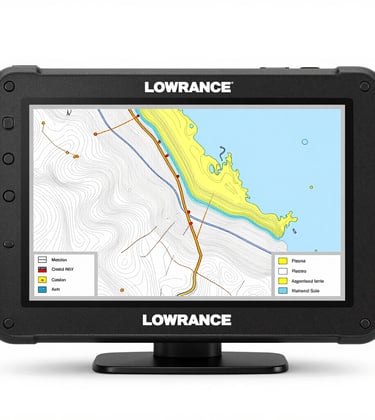

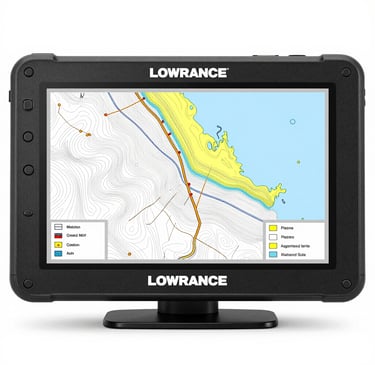

Lowrance - All HDS models (LIVE, Pro, Gen3, Carbon) needs HDS Video Adaptor Cable - Lowrance Part Number: 001-11010-001

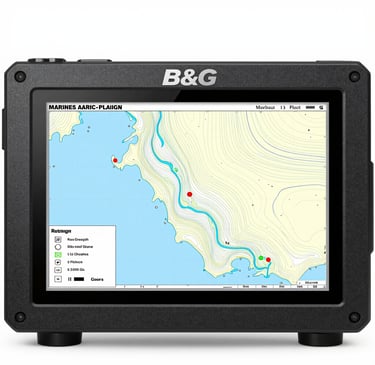

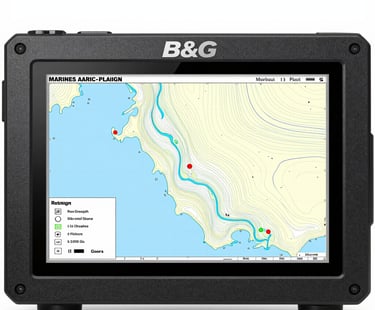

B&G - Zeus 3S (9", 12", 16") needs NSE/NSS Video/Data Cable - Simrad Part Number: 000-00129-001

B&G - Zeus 3S Glass Helm (16", 19", 24") use RCA to BNC adapter included with NAVI

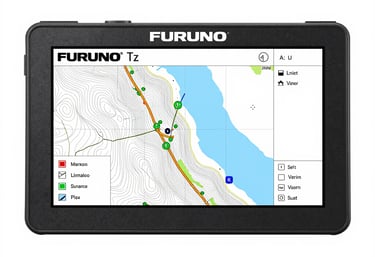

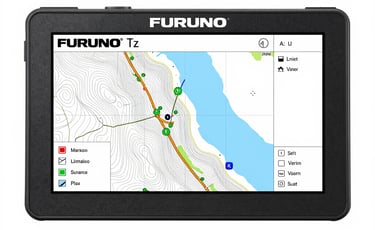

Furuno Chart Plotters

The Following MFD Models only need the RCA cable that is supplied with NAVI: TZ Touch 2 12", TZ Touch 2 15", TZ Touch 3 12", TZ Touch 3 16", TZ Touch 3 19", NavNet 3D 12"

The Following MFD Models need Furuno video adapter cable (Furuno part number: 001-647-020-00) and the RCA cable that is supplied with NAVI: TZT10X, TZT13X, TZT16X, TZT16 XL, TZT22X, TZT22 XL, TZT24X, TZT24 XL

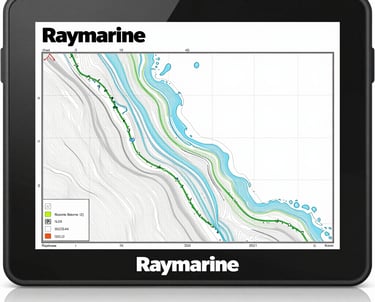

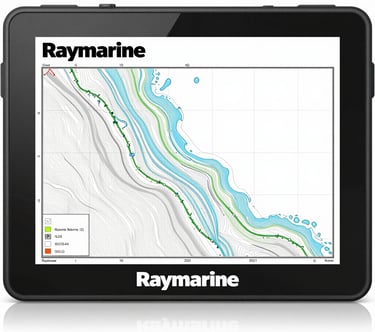

Raymarine

The Following MFD Models need Raymarine video adapter cable (Raymarine part number: R62379) and the RCA to BNC adapter that is supplied with NAVI: Axiom Pro 9", Axiom Pro 12", Axiom Pro S 9", Axiom Pro S 12", Axiom Pro S 16", Axiom 2 Pro S 9", Axiom 2 Pro S 12", Axiom 2 Pro S 16", Axiom Pro RVX 9", Axiom Pro RVX 12", Axiom Pro RVX 16", Axiom 2 Pro RVM 9", Axiom 2 Pro RVM 12", Axiom 2 Pro RVM 16", Axiom XL 16", Axiom XL 19", Axiom XL 22", Axiom XL 24", Axiom 2 XL 16", Axiom 2 XL 19", Axiom 2 XL 22", Axiom 2 XL 24", C97, E95, E125, E127, E165, GS95, GS125, GS165, ES97

The Following MFD Models need Raymarine video adapter cable (Raymarine part number: RAY-R70414) and the RCA to BNC adapter that is supplied with NAVI: ES75 HybridTouch, ES78 HybridTouch

The Following MFD Models need Raymarine video adapter cable (Raymarine part number: E55057) and the RCA to BNC adapter that is supplied with NAVI: E80 Classic, E120 Classic

The Following MFD Model needs Raymarine video adapter cable (Raymarine part number: R62227) and the RCA to BNC adapter that is supplied with NAVI: C90W

The Following MFD Model needs Raymarine video adapter cable (Raymarine part number: R62131) and the RCA to BNC adapter that is supplied with NAVI: E90W

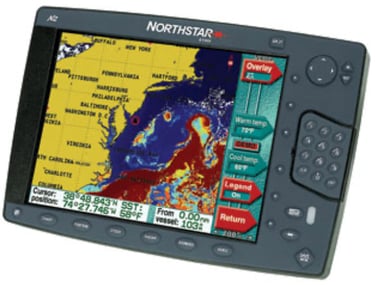

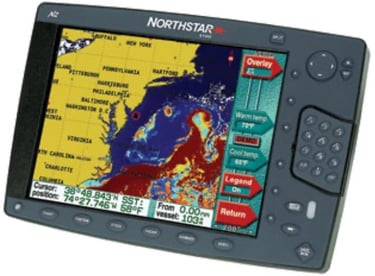

Northstar

The Following MFD Models only need the RCA to BNC adapter that is supplied with NAVI: 8000i, 6100i, M121, M84

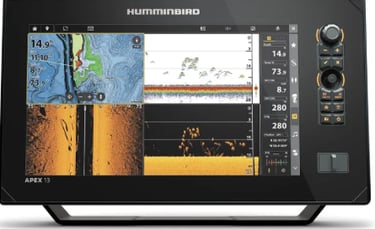

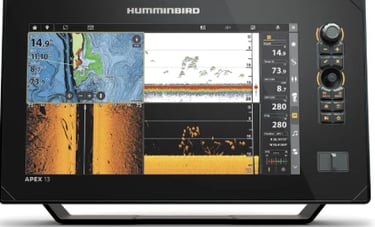

Hummingbird

Does not have any units compatible with NAVI
